Load test Summary - 4000 users in 30 minutes

Load Test Configuration

SplendidCRM achieved 3,956 tests in 30 minutes and 7,581 tests in 60 minutes. We used 500 virtual users over 52 minutes, with an additional 8 minutes for cool-down. During the load, the database server averaged 75% of capacity and the web server averaged 65% of capacity.

Database Server Configuration:

SQL Server 2008 x64 Enterprise SP1

Windows Server 2003 Standard x64 SP2

HP ProLiant DL360 G5

Intel Xeon E5420 2.50GHz Dual-Processor Quad-Core

14GB RAM (only 3GB used)

Compaq Smart Array P400i 256MB Cache

6 x 146GB 10K RPM SAS as single RAID 5

Web Server Configuration:

Windows Server 2008 R2 Standard x64

HP ProLiant DL360 G5

Intel Xeon E5335 2.00GHz Dual-Processor Quad-Core

16GB RAM (only 2GB used)

Compaq Smart Array P400i 256MB Cache

6 x 146GB 10K RPM SAS as single RAID 5

Test Load Agent Configuration Machine 1:

Windows 7 x86 Enterprise

HP XW8200 Workstation

Intel Xeon 3.00GHz Dual Processor Single-Core Hyper-Threading Enabled

3GB RAM

Compaq Smart Array 6400 128MB Cache

2 x 300GB 15K RPM SCSI as RAID 1

Test Load Agent Configuration Machine 2:

Windows 7 x64 Enterprise

HP XW8200 Workstation

Intel Xeon 3.00GHz Dual Processor Single-Core Hyper-Threading Enabled

3GB RAM

Compaq Smart Array P600 256MB Cache

2 x 300GB 15K RPM SAS as RAID 1

Test Load Controller Configuration:

Visual Studio 2008 Team Test Edition

Windows Server 2003 Standard x86 SP2

HP W8000 Workstation

Intel Xeon 2.20GHz Dual Processor Single-Core Hyper-Threading Enabled

1GB RAM

Compaq Smart Array 5300 128MB Cache

2 x 300GB 15K RPM SCSI as RAID 1

SplendidCRM Database Configuration:

4,000 Users

1 Team

5,000 Accounts

30,000 Contacts

Test Profile A: Schedule a Single Call (1 minute, 12% load)

1. Random user Login

2. Contacts List

3. Search Contacts List

4. Select Contact

5. Schedule Call

6. Save Call

7. Close Browser

Test Profile B: Create 3 Contact and Schedule 3 Calls (2 minutes, 25% load)

1. Random user Login

2. Contacts List

3. Create Contact 1

4. Schedule Call 2

5. Save Call 2

6. Contacts List

7. Create Contact 2

8. Schedule Call 2

9. Save Call 2

10. Contacts List

11. Create Contact 3

12. Schedule Call 3

13. Save Call 2

14. Close Browser

Test Profile C: Search 8 times and Schedule 4 Calls (5 minutes, 63% load)

1. Random user Login

2. Contacts List

3. Search Contacts List 1

4. Search Contacts List 2

5. Select Contact 1

6. Schedule Call 1

7. Save Call 1

8. Contacts List

9. Search Contacts List 3

10. Search Contacts List 4

11. Select Contact 2

12. Schedule Call 2

13. Save Call 2

14. Contacts List

15. Search Contacts List 5

16. Search Contacts List 6

17. Select Contact 3

18. Schedule Call 3

19. Save Call 3

20. Contacts List

21. Search Contacts List 7

22. Search Contacts List 8

23. Select Contact 4

24. Schedule Call 4

25. Save Call 4

26. Close Browser

Load Test Summary

Test Run Information

Load test name	RealisticTest2
Description
Start time	10/25/2009 8:21:04 PM
End time	10/25/2009 9:13:04 PM
Warm-up duration	00:00:00
Duration	00:52:00
Controller	DEVELOPER3
Number of agents	2
Run settings used	Run Settings1

Overall Results

Max User Load	500
Requests/Sec	674
Requests Failed	0
Requests Cached Percentage	69.5
Avg. Response Time (sec)	0.086
Avg. Content Length (bytes)	7,092
Tests/Sec	2.27
Tests Failed	0
Avg. Test Time (sec)	181
Avg. Transaction Time (sec)	0
Avg. Page Time (sec)	0.90

Key Statistic: Top 5 Slowest Pages

URL (Link to More Details)	Avg. Page Time (sec)
http://test01/Contacts/default.aspx	1.25
http://test01/Contacts/default.aspx	1.18
http://test01/Contacts/	1.17
http://test01/Contacts/	1.14
http://test01/Contacts/	1.10

Key Statistic: Top 5 Slowest Tests

Name	Avg. Test Time (sec)
Search9Schedule4	247
Create3Contacts2	220
ScheduleSingleCall2	65.4

6 Test Results

Name	Scenario	Total Tests	Avg. Test Time (sec)
Search9Schedule4	Scenario1	3,255	247
Create3Contacts2	Scenario1	1,465	220
ScheduleSingleCall2	Scenario1	2,377	65.4

6 Page Results

URL (Link to More Details)	Scenario	Test	Avg. Page Time (sec)	Count
http://test01/Contacts/default.aspx	Scenario1	Search9Schedule4	1.25	35,805
http://test01/Contacts/default.aspx	Scenario1	ScheduleSingleCall2	1.18	2,377
http://test01/Contacts/	Scenario1	Create3Contacts2	1.17	2,930
http://test01/Contacts/	Scenario1	Search9Schedule4	1.14	9,765
http://test01/Contacts/	Scenario1	ScheduleSingleCall2	1.10	2,377
http://test01/LoadTestLogin.aspx	Scenario1	Create3Contacts2	1.00	1,465
http://test01/LoadTestLogin.aspx	Scenario1	Search9Schedule4	0.98	3,255
http://test01/Contacts/edit.aspx	Scenario1	Create3Contacts2	0.89	8,790
http://test01/LoadTestLogin.aspx	Scenario1	ScheduleSingleCall2	0.86	2,377
http://test01/Calls/edit.aspx	Scenario1	ScheduleSingleCall2	0.79	7,131
http://test01/Calls/edit.aspx	Scenario1	Create3Contacts2	0.77	13,185
http://test01/Calls/edit.aspx	Scenario1	Search9Schedule4	0.76	35,805
http://test01/Contacts/view.aspx	Scenario1	Search9Schedule4	0.68	26,040
http://test01/Contacts/view.aspx	Scenario1	ScheduleSingleCall2	0.67	4,754
http://test01/Contacts/view.aspx	Scenario1	Create3Contacts2	0.46	4,395

6 Transaction Results

Name	Scenario	Test	Response Time (sec)	Elapsed Time (sec)	Count

6 System Under Test Resources

Machine Name	% Processor Time	Available Memory at Test Completion (Mb)
VMHOST3	66.2	11,375
VMHOST5	-	-

6 Controller and Agents Resources

Machine Name	% Processor Time	Available Memory at Test Completion (Mb)
DEVELOPER7	-	-
DEVELOPER8	-	-
DEVELOPER3	7.57	48

6 Errors

Type	Subtype	Count	Last Message
Exception	LoadTestCounterCategoryNotFoundException	9	The performance counter category 'PhysicalDisk' cannot be accessed on computer 'DEVELOPER8' (The network path was not found) ; check that the category and computer names are correct.
Exception	LoadTestAgentResultsLateException	3	Results from agent 'DEVELOPER7' were not received in time to be included in the overall results for a sampling interval. To avoid this error, increase the sample rate, or decrease the load on this agent.

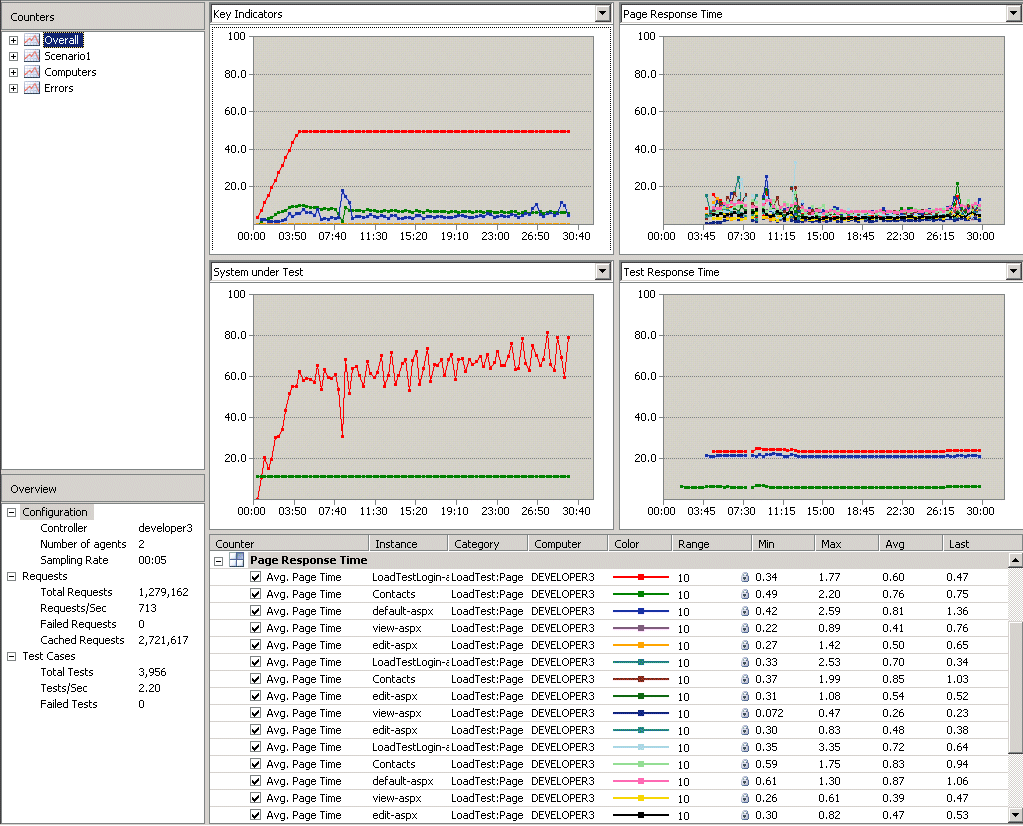

6 Load Test Graphs - 30 min

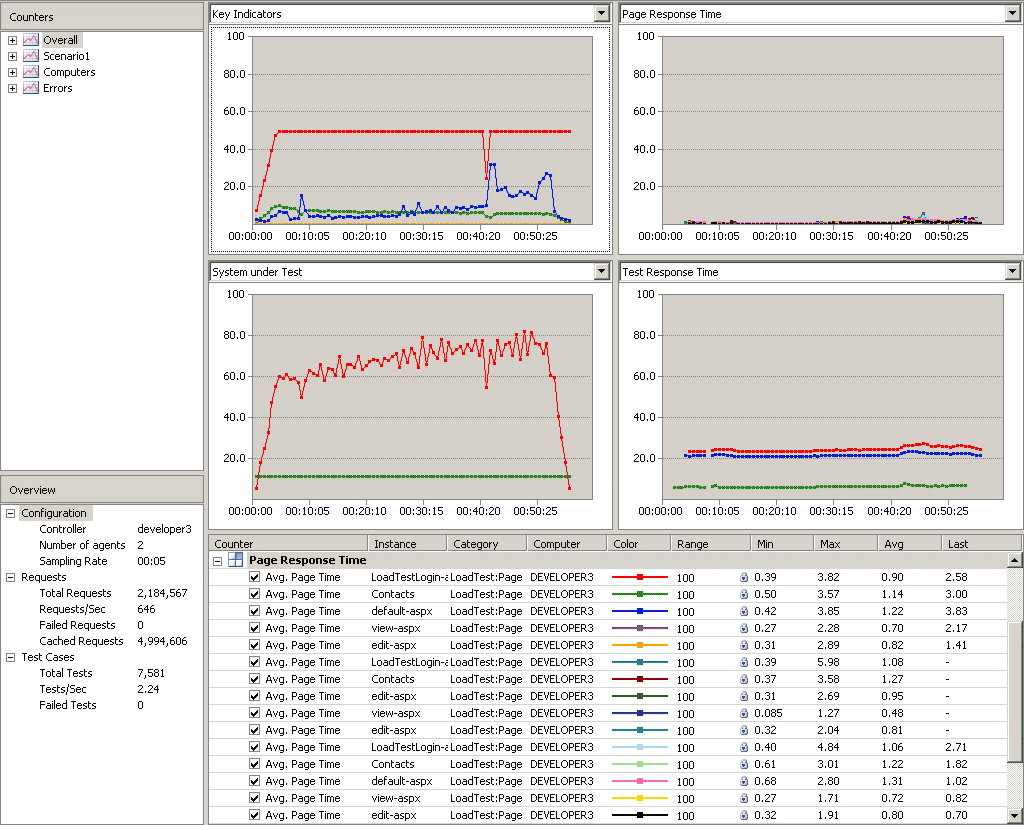

6 Load Test Graphs - 60 min

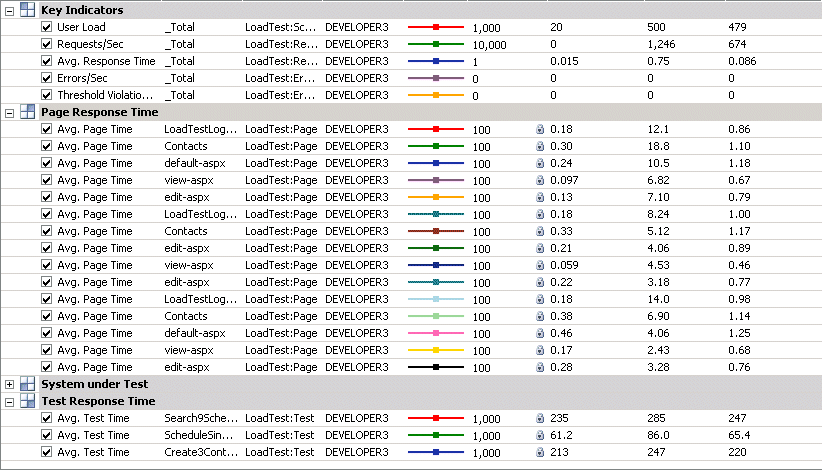

6 Load Test Tables - Final
